Remote LED & Buzzer Box (only suitable for CR1 variants). 85 x 85 x 8 mm |
Single piece unit manufactured to fit a standard electrical back box. Units face plate is silver paint finished with three LED's Red, Amber and Green protruding. Buzzer fitted internally. Screw connections. |
|
Visual feedback to tag holders and staff. |
|
|
|
Remote Tag Counter Display (only suitable for CR1 variants). 200 x 80 x 50 mm |
Single piece unit manufactured in surface mounting plastic housing. Contains 4 seven segment LED displays. Screw connections. |
Displays can be divided to indicate the tags in either field of a CR1-DS, or to increment and decrement for tags entering and leaving through the same CR1-DS unit. |
Visitor identification at main receptions. |
|
|
|
|
|
|
|
|
|
|

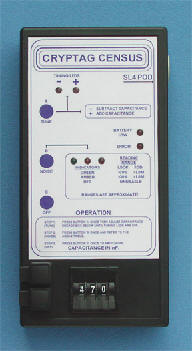

Site Survey & Tuning Unit. 105 x 60 x 30 mm |
Two piece unit. Survey unit checks for noise at the critical frequency used by the Census readers. Also enables tuning capacitor value to be determined accurately. |
|
Diagnostic tool |
|
|
|
Test Tag |
LED Tag enables user to determine the extent of the transmission field and the detection zone when used with a standard Census tag. |
|
Diagnostic tool. |
|
|
|
Performance Test Tag 110 x 85 x 35 mm |
Units suitable for use with CR1 variants only. Reader firmware must be modified to operate with a PTT1 tag for each aerial fitted. Unit requires a 12 volt dc supply and provides a volt free change over relay which changes state when the tag has lost communications with the Census reader. |
|
Recommended for use with every CR1 that is used to monitor an open portal. |
|
|
|
|
|
|
|
|
|
|
Receiver Pod 200mm x 20 mm diameter |
Additional receiver pod for connection to a CR1-DS1 unit. Maximum of four such units may be connected to each CR1-DS1. |
|
Internal use only |
|
|
|
External Waterproof Receiver Pod. 200mm x 40 mm diameter. |
Additional receiver pod for connection to a CR1-DS1 unit. Maximum of four such units may be connected to each CR1-DS1. |
|
Internal / external use. Very Robust. |
|
|
|
Black Box Multiplexer. 135 x 135 x 50 mm |
Unit is required when two or more CR1 readers have overlapping detection fields. The BB-MUX is capable of controlling up to 4 x CR1-DS units (i.e. 8 loops). The CR1 reader firmware must be modified to operate with a BB-MUX. Unit requires a 12 volt dc supply and connects to each reader via a three wire connection. |
|
To eliminate black holes where independently controlled detection zones overlap. |
|
|
|
|
|
|
|
|
|
|
Multiplexed Aerial System |
Unit can monitor up to 16 loop aerial driver PCBs arranged into 8 detection zones. Unit is custom built and normally provides a single RS232 output which identifies the zone and tags detected in each zone in ASCII format. Two Wiegand outputs available for direction sensing for wide entry/exit. |
|
To cover wide portals. |
|
|
|
Stainless Steel Aerial Stanchion. Finish:- Decorative Stainless Steel. Dimensions:- Approx. 1600 x 500 mm |
Robust aerial support stanchion for use on CR1 range of loop configurable readers. Unit provides approximately 2.0 metres detection radius when used with TC1 or TC6 tags. Supplied pretuned with termination in the base of one leg. Suitable for internal or external mounting. Ideal for car park control or asset tracking applications. Supplied with 5 metres of interconnecting cable. |
|
Parking Control, Asset Tracking and Safety Registration. |
|
|
|
|
|
|
|
|
Tags |
|
|
|
|
|
|
|
|
Personnel Tag 86 x 54 x 4.5mm |
Robust Industrial strength Active Tag. Can be supplied with up to 64 bits of encoded data. Normally only supplied with 32 bits. Sealed tag typical life expectancy 5 years based on 6 minutes use every day. |
Supplied with standard blue insert label. This label is sometimes replaced with a photo ID insert. |
Hands Free Access Control & Safety Registration |
|
|
|
Article Tag for Non Metallic items. 76 x 56 x 7mm |
Robust industrial strength Active Limpet tag. Designed to attach to flat non metallic surfaces by adhesive or screw fixing . Standard colour black. Can be supplied with up to 64 bits of encoded data. Normally only supplied with 32 bits. Sealed tag typical life expectancy 5 years based on 6 minutes use every day. |
|
Asset tracking. |
|
|
|
Article Tag for Metallic items. 76 x 56 x 7 mm |
Robust industrial strength Active Limpet tag. Designed to attach to flat metallic surfaces by adhesive or screw fixing. Standard colour black. Can be supplied with up to 64 bits of encoded data. Normally only supplied with 32 bits. Sealed tag typical life expectancy 5 years based on 6 minutes use every day. |
|
Asset tracking or Vehicle ID |
|
|
|
Key-fob Tag with replaceable battery. 53 x 43 x 15 mm |
Tear drop shaped tag designed for attachment to key ring. Standard colour black. Can be supplied with up to 64 bits of encoded data. Normally only supplied with 32 bits. Replaceable battery provides a typical life expectancy 3 years based on 6 minutes use every day. |
|
Hands Free Access Control |
|
Tags |
|
|
|
|
|
|
|
|
Industrial strength Key-fob Tag. 53 x 43 x 10 mm |
Tear drop shaped tag designed for attachment to key ring. Standard colour black. Can be supplied with up to 64 bits of encoded data. Normally only supplied with 32 bits. Sealed tag typical life expectancy 5 years based on 6 minutes use every day. |
Tag case can be ink jet printed with the tag number. Tag can be supplied with a spring steel clip enabling attachment to belt, trouser or skirt waistband. |
Prison Key monitoring. Article Tracking for resource management. |
|
|
|

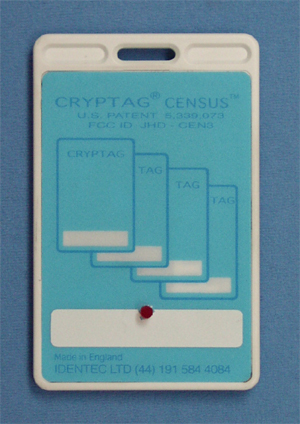

Cliptag 95 x 64 x 5 mm (overall dimensions) |
ISO Card Holder Tag. Ideal receptor for photo ID or credit vending card. Tag is capable of being suspended in either the landscape or portrait orientations. ISO card can be slid in and out as required. Tag has a replaceable battery which provides a typical life expectancy of 3 years based on 6 minutes use every day. Available as standard in black or white. |
For large volumes alternative colours can be produced. Metal clip for strengthening the attachment points available as retrofit. |
Hands Free Access Control & Safety Registration. |
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
